OAuth 2.0 — Clearly Explained (With Real-World Example)

By Abhijeet Verma · January 30, 2026 · Authentication & Authorization

When people first hear about OAuth 2.0, it sounds complex.

But in reality, it solves a very simple and very important problem:

How can one application access user data from another application — without knowing the user’s password?

Let’s break it down step by step.

1. The Problem OAuth 2.0 Solves

❌ The Old (Bad) Way

Imagine this scenario:

You build a Project Portal
Users want to import their profile data from a User Profile Service
The portal needs access to the user’s profile

Naively, you might think:

“Ask the user for their username and password of the Profile Service.”

This is terrible because:

Your app now stores user passwords.
If your app is compromised, attackers get passwords.
Users must trust every app with their credentials.
You cannot restrict access (all or nothing access).

This model does not scale.

✅ What We Actually Want

We want:

The user to log in only to the Profile Service
The Project Portal to get limited access
No password sharing
Revocable access
Scoped permissions

This is exactly what OAuth 2.0 provides.

2. What is OAuth 2.0?

OAuth 2.0 is an authorization framework.

It allows:

A third-party application to obtain limited access to a protected resource on behalf of a user.

It does NOT define login. It defines delegated authorization.

3. Key Roles in OAuth 2.0

Let’s define the actors:

Role	Meaning
Resource Owner	The user
Client	The application requesting access (Project Portal)
Authorization Server	Issues tokens
Resource Server	Hosts protected APIs (User Profile Service)

4. The Authorization Code Flow (Most Important Flow)

This is the most secure and most common OAuth 2.0 flow.

Used by:

Web applications
Backend servers
Modern secure systems

Let’s walk through it carefully.

🎯 Scenario

User is on Project Portal
Clicks: “Import My Profile”
Portal needs profile data from User Profile Service

5. Step-by-Step: Authorization Code Flow

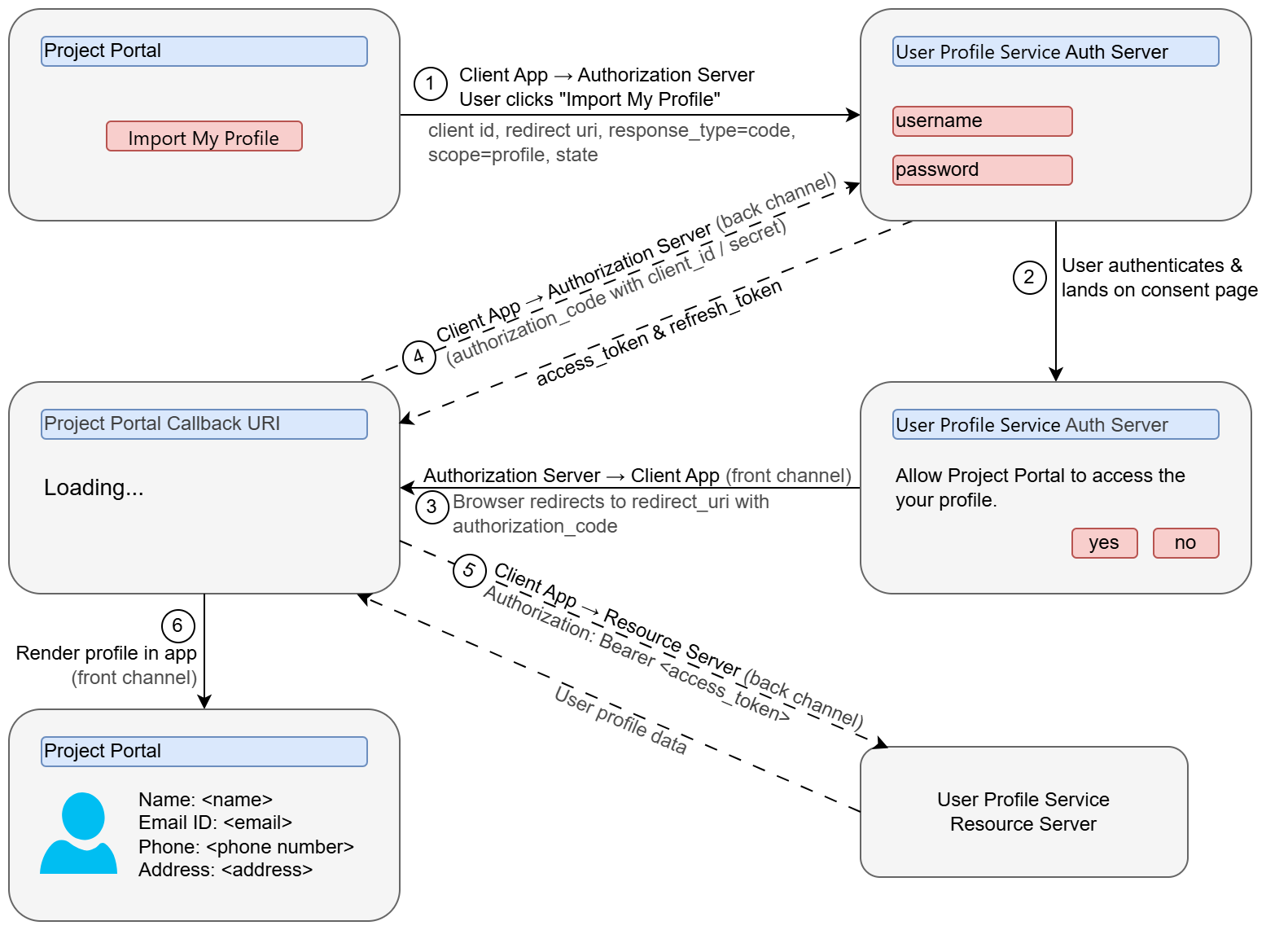

OAuth 2.0 on the browser

Step 1 — Redirect User to Authorization Server

The client (Project Portal) redirects the user to:

https://auth-server.com/authorize?
  client_id=abc123
  &redirect_uri=https://project-portal.com/callback
  &response_type=code
  &scope=profile

User logs in there.

Important: Login happens on the Authorization Server — not on the client app.

Step 2 — User Grants Permission

User sees:

“Project Portal wants access to your profile.”

User clicks Allow.

Step 3 — Authorization Code Returned

Authorization Server redirects back:

https://project-portal.com/callback?code=XYZ789

Now the client has an authorization code.

But this code cannot access data yet.

Step 4 — Exchange Code for Access Token

Now the client’s backend makes a secure server-to-server call:

POST /token
client_id=abc123
client_secret=supersecret
code=XYZ789

Authorization Server responds:

{
  "access_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...",
  "expires_in": 3600,
  "refresh_token": "abc.def.ghi"
}

Step 5 — Access Resource Server

Client now calls:

GET /profile
Authorization: Bearer eyJhbGciOiJIUzI1Ni...

Resource Server validates token and returns profile data.

Step 6 — Render profile in app

Project portal frontend renders user's profile on the UI.

6. Detailed Sequence Diagram

The following sequence diagram visualizes the complete OAuth 2.0 Authorization Code Flow from end to end. It illustrates the interaction between all four key roles: the User (Resource Owner), the Project Portal (Client), the Authorization Server, and the Resource Server. This diagram captures the entire flow from the initial user action to the final rendering of profile data, including the critical token exchange that happens securely between the client backend and authorization server.

sequenceDiagram
  box Project Portal
    participant U as User / Browser
    participant B as Backend (Client)
  end
  box User Profile Service
    participant UA as Authorization Server
    participant UR as Resource Server
  end

  Note over U: Already logged into Project Portal

  U->>B: Click "Import My Profile"

  Note over B: No valid access token

  B-->>U: Redirect to Authorization Server

  U->>UA: GET /authorize
  Note over U, UA: client_id, redirect_uri, response_type=code,
scope=profile, state=xyz

  UA-->>U: Login & Consent page

  U->>UA: Authenticate + Approve access

  UA-->>U: Redirect to Project Portal
?code=abc123&state=xyz

  U->>B: Send authorization code

  B->>UA: POST /token
  Note over B,UA: grant_type=authorization_code,
code=abc123, client_id,
client_secret, redirect_uri

  UA-->>B: access_token + refresh_token

  B->>UR: GET /profile
Authorization: Bearer access_token

  UR-->>B: User profile data

  B-->>U: Render profile in app

7. Why Is Authorization Code Flow Secure?

Let’s analyze the security properties.

✅ 1. No Password Sharing

The client never sees the user’s password.

✅ 2. Short-Lived Tokens

Access tokens expire quickly.

✅ 3. Scopes

Client only gets specific permissions.

Example:

scope=profile email

✅ 4. Revocable Access

User can revoke access anytime.

✅ 5. Client Authentication

The token exchange requires:

client_id
client_secret

This prevents token theft misuse.

✅ 6. Backend Token Exchange

The most sensitive step happens server-to-server.

8. Other OAuth 2.0 Grant Types

Authorization Code is the most important one.

But OAuth 2.0 defines other flows:

1. Client Credentials Flow

Used for:

Machine-to-machine communication
No user involved

Example:

Backend service calling another backend

2. Device Code Flow

Used for:

Smart TVs
IoT devices
Devices without browsers

3. Implicit Flow (Deprecated)

Earlier used for:

Single Page Applications

Now discouraged due to security issues.

4. Resource Owner Password Credentials (Deprecated)

Client collects username & password.

Strongly discouraged.

9. What OAuth 2.0 Does NOT Do

Important teaching point:

OAuth 2.0 is about authorization — not authentication.

It does not define:

How identity is represented
How user profile is standardized
How login tokens should look

This is where OIDC comes in.

10. What OpenID Connect (OIDC) Adds

OpenID Connect (OIDC) is built on top of OAuth 2.0.

It adds:

✅ ID Token (JWT)

A standardized token that contains:

{
  "sub": "12345",
  "email": "[email protected]",
  "name": "John Doe"
}

Now clients can verify:

Who the user is
That authentication happened
When it happened

In Short:

OAuth 2.0	OIDC
Authorization	Authentication
Access Tokens	ID Tokens
API Access	User Identity

🧠 Final Summary

OAuth 2.0 solves a fundamental modern web problem:

How to safely delegate access without sharing passwords.

The Authorization Code Flow is:

Secure
Scalable
Industry standard
Used by Google, GitHub, Microsoft, etc.

If you understand this flow deeply, you understand 80% of modern authentication systems.
